Selore USB C Docking Station for Laptop Dual Monitors, Upgrade 14 in 1 Triple Monitor Docking Station Display USB C Hub Dual HDMI Adapter Dongle Triple 4K Docking Station for Dell/HP/Surface/MacBook

Triple monitor docking station provides multiple displays and increases the productivity of your device by expanding the female Type C port to multiple possibilities of connectivity; this laptop dongle would be an ideal for everyday carrying, commuting and travelling.

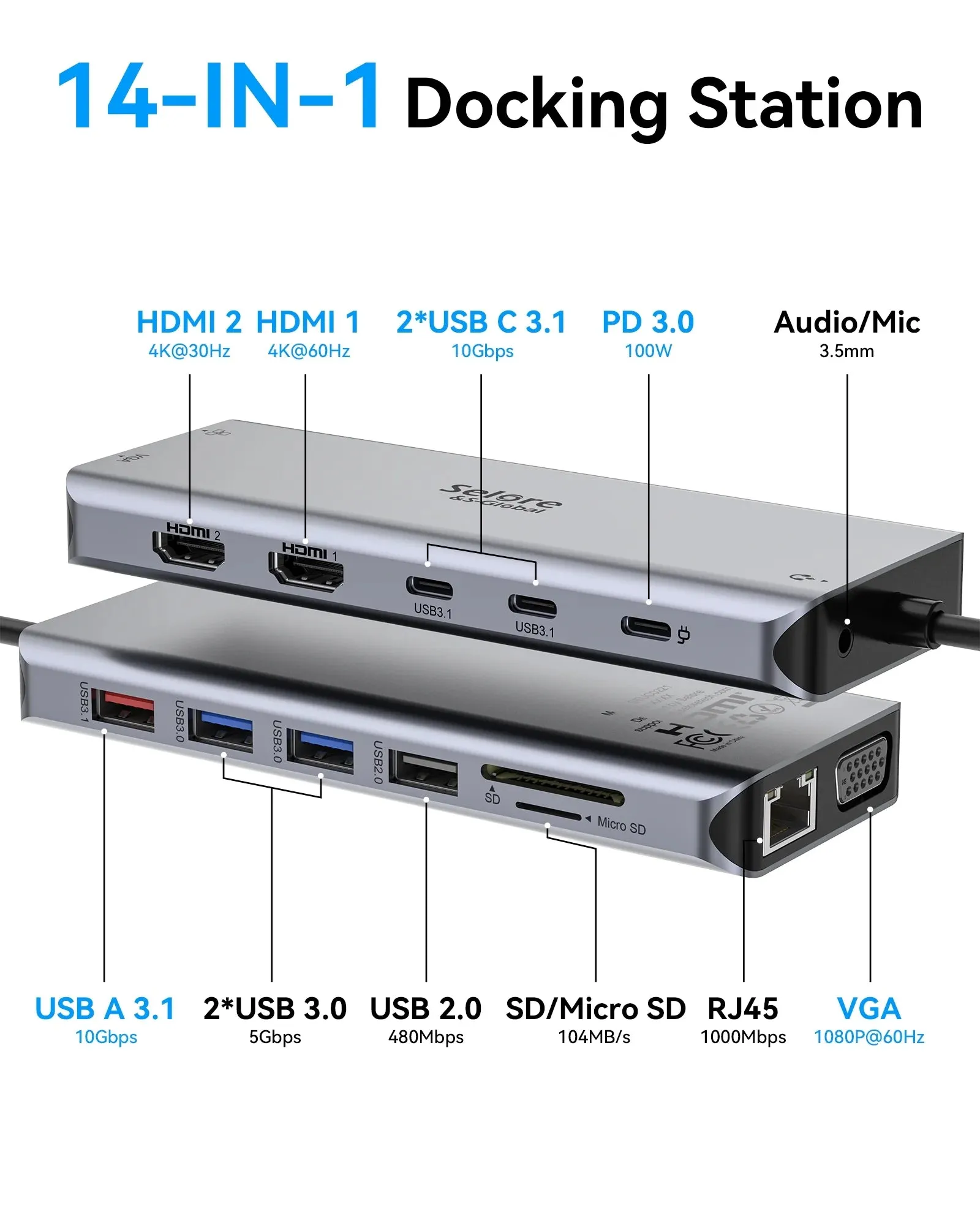

Interfaces Specification:

☑ 3x Video Ports:
• HDMI 1 port works independently with resolution up to 4K@60HZ (signal source is DP1.4)
• HDMI 2 port works independently with resolution up to 4K@30HZ (signal source is DP1.4)
• VGA Port: Max resolution up to 1080P@60HZ

☑ 8x Data Ports:

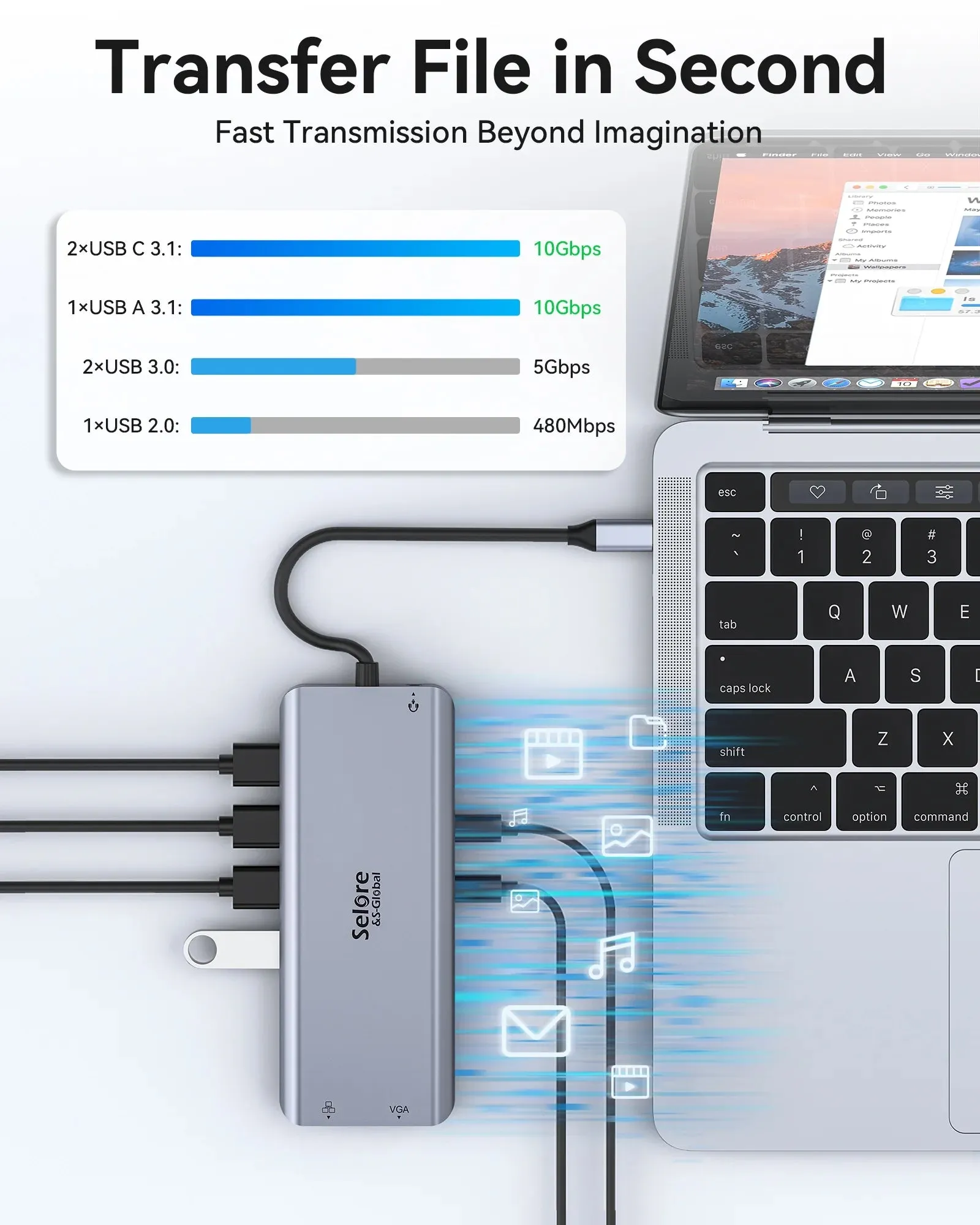

• 1 USB 3.1 C Port: Transfer speed up to 10Gbps
• 2 USB 3.1 A Ports: Transfer speed up to 10Gbps
• 2 USB 3.0 A Ports: Transfer speed up to 5Gbps
• 1 USB 2.0 A Port: Speed up to 480mb/s; Connect keyboard or mouse without any lag
• SD and TF Card Reader: Data transfer up to 104MB/s; View your photos or videos quickly

☑ 3x Other Ports:
• PD 3.0 Charing Port: Supports 87W safely fast charging

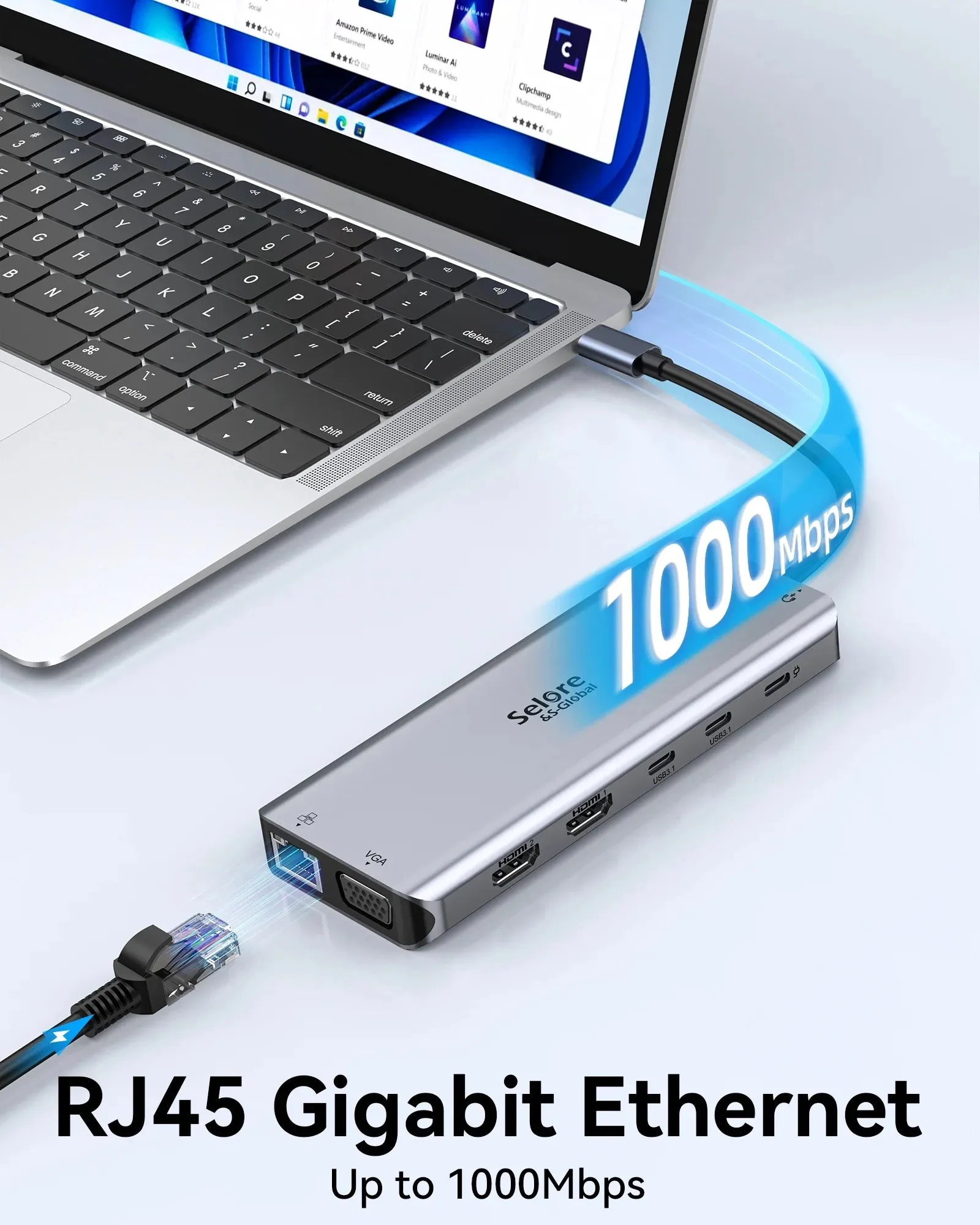

• 1000Mbps Ethernet Port: Stable wire ethernet makes your work more effective

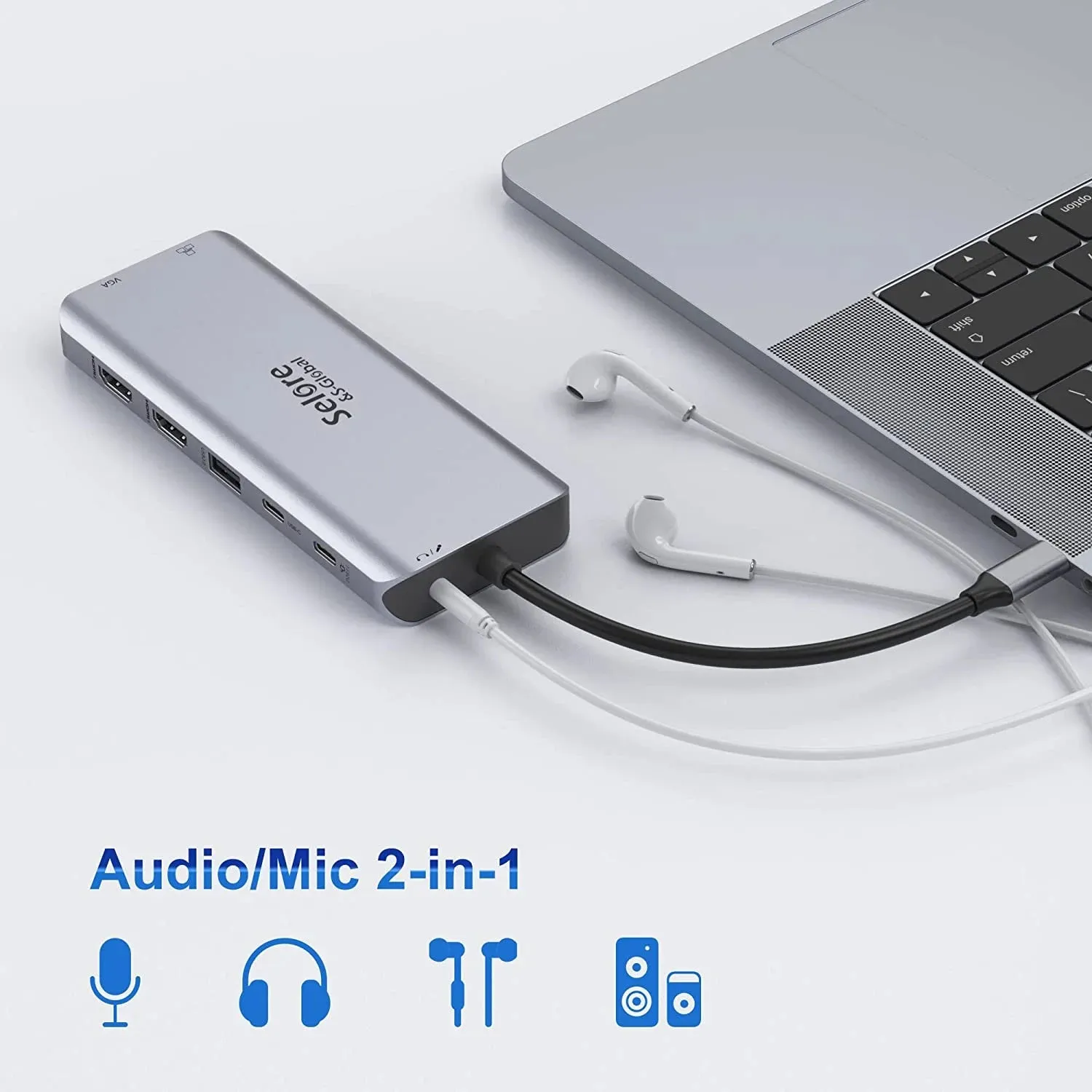

• 3.5mm Audio Port: With mic and audio-out function

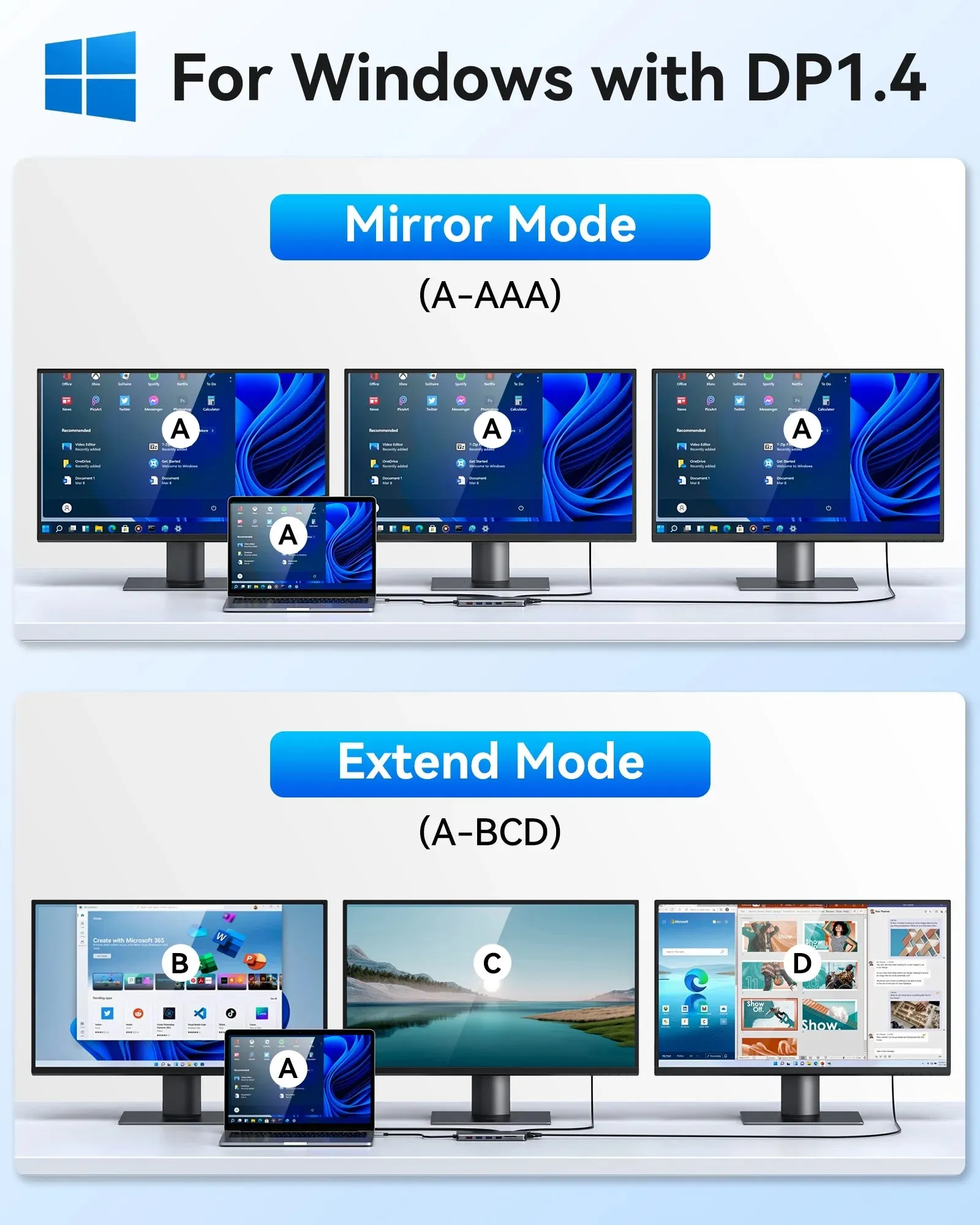

Video Resolution Configurations:

☑ Video Display Images:
• Mirror Mode: A- A / AA / AAA
• Extend Mode (for macOS): A- B / BB / BBB
• Extend Mode (for Windows): A- B / BB / BC / BBB / ABC / BCD

☑ Multi-display Mode:
• Connect to 2 external monitors, resolutions are 4K 3840x2160@30Hz (HDMI 1 HDMI 2).
• Connect to 3 external monitors, resolutions are 1920x1080@60Hz (HDMI 1 HDMI 2 VGA).
• Connect VGA for dual or triple display, resolutions are limited at 1920x1080@60Hz (Max).

Please Note:
- Resolution: To achieve 4K, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0.

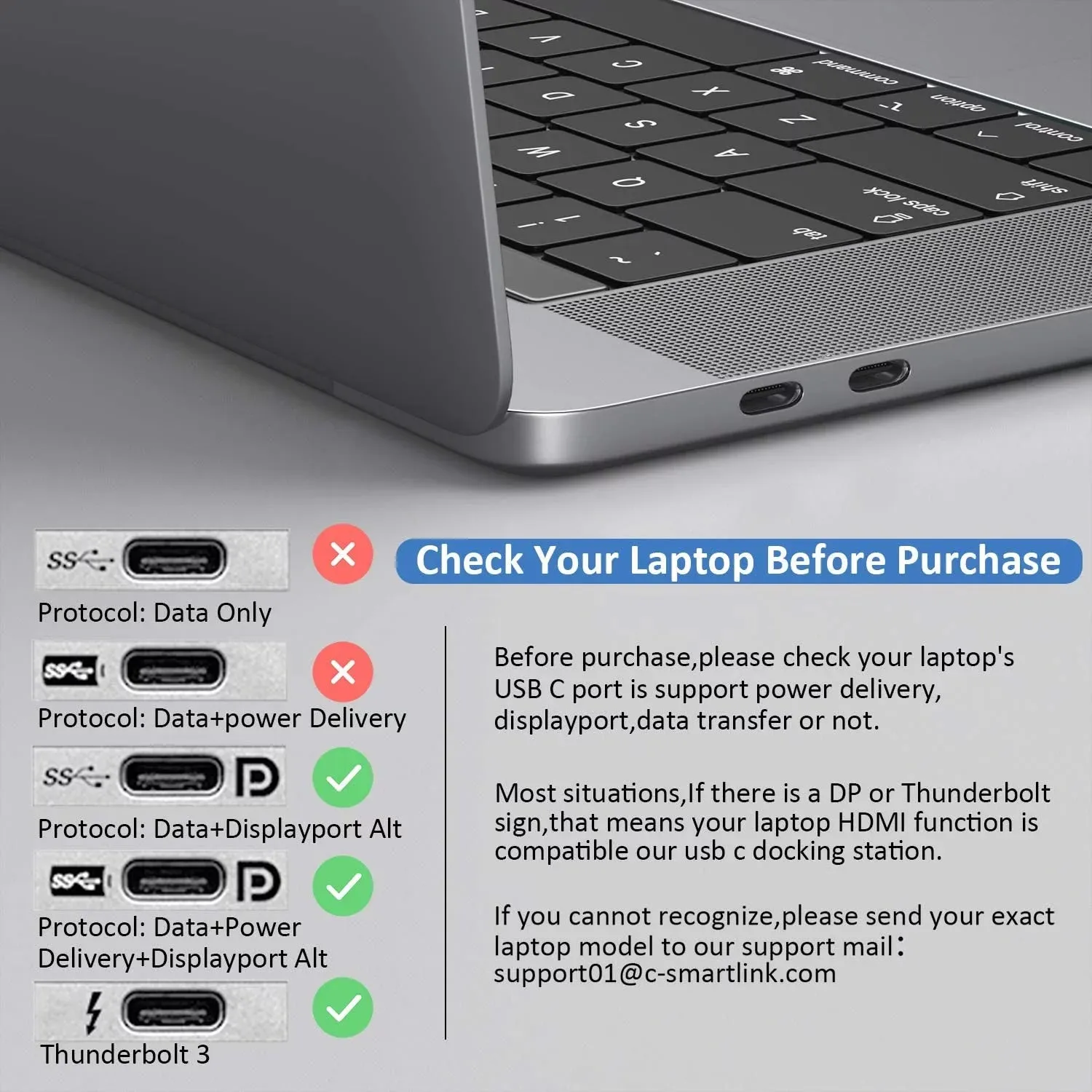

- Compatiblity: Please make sure your laptop has thunderbolt 3 / 4 port or Full-featured USB Type-C port (support display, charging, data transfer protocol) to be compatible with this USB C docking station. If you are not sure, let us know and we will be happy to help you check if the hub works with your device.

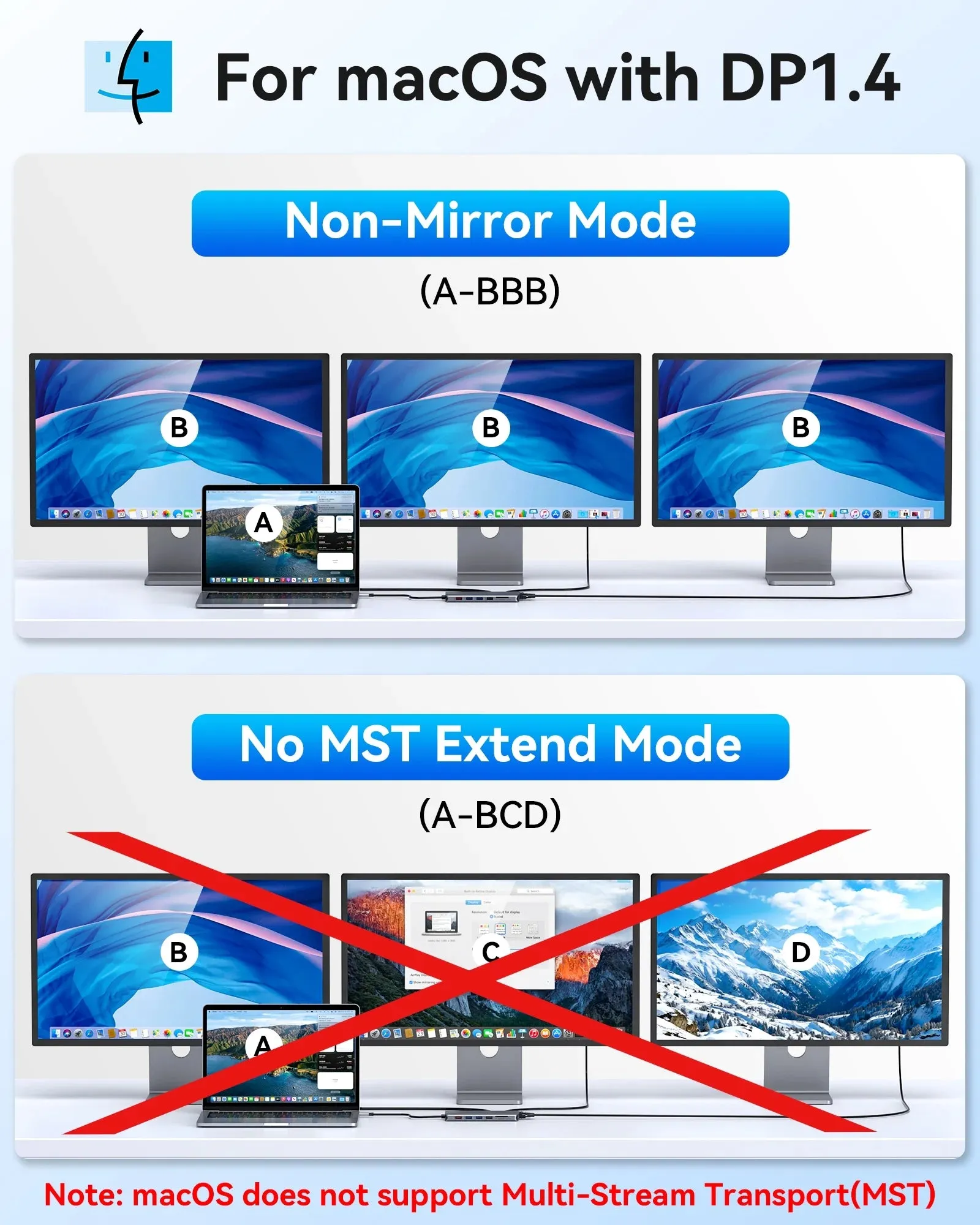

- The MacOS restriction: This laptop docking station only supports Mirror Mode and Non-Mirror Mode without multiple displays if you use it to connect macOS laptops.
- For Intel Graphics Card, only supports 3 screens display, one screen will not be displayed. For AMD Graphics Card, four screens will be displayed.
- For laptops of DP1.2, HDMI 1 port resolutions at 4K@30Hz, HDMI 2 port at 1080@60Hz.

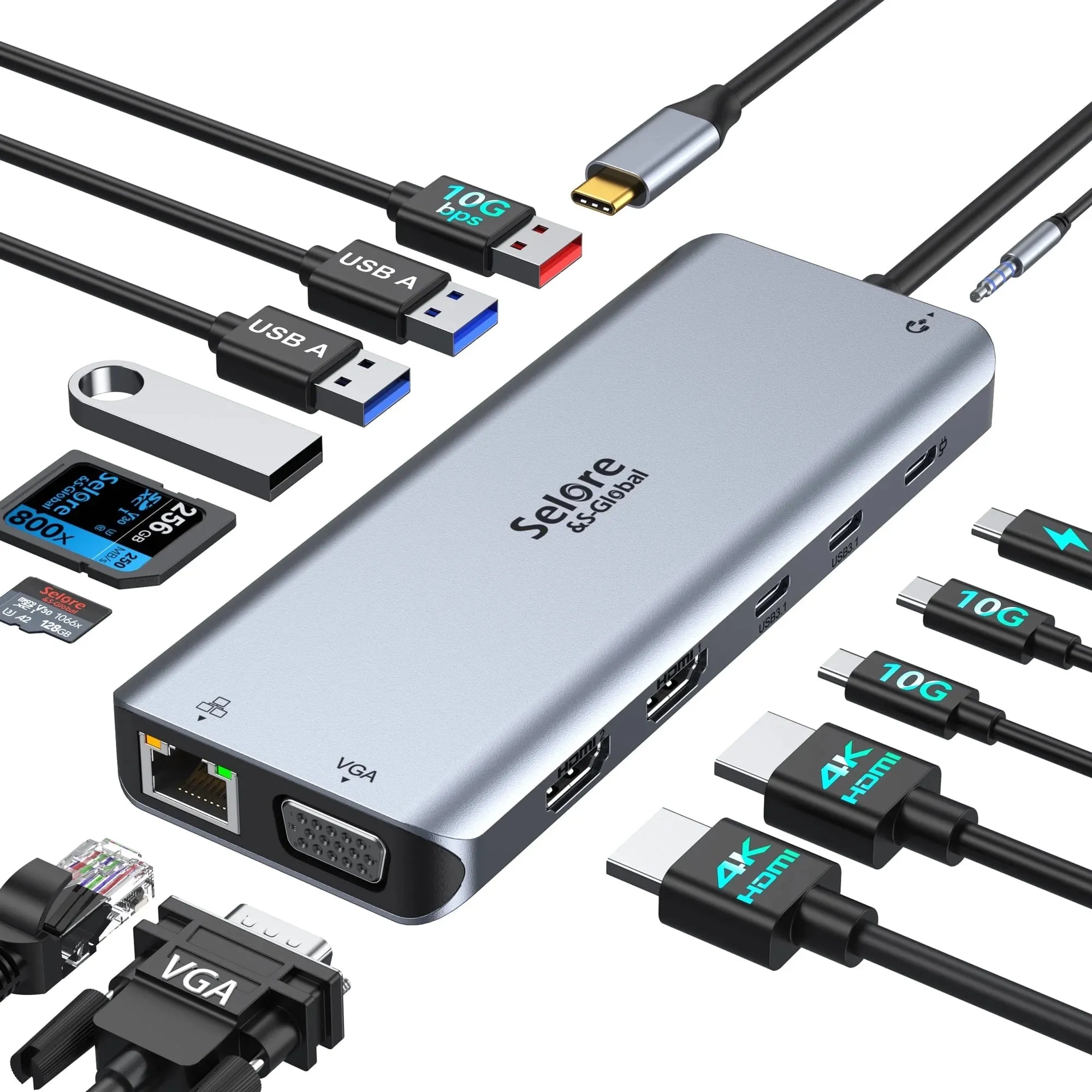

• 14-in-1 Laptop Docking Station ─ The docking station dual monitor features everything you need, from dual 4K HDMI and VGA video display to 10Gbps USB-C; USB-A downstream peripheral ports to 87W Power Delivery and 1000Mbps Ethernet. This laptop docking station turns your laptops with USB-C or Thunderbolt 3 port into a powerful workstation. Please ensure your laptop has a thunderbolt 3 / 4 or USB-C port (support DisplayPort) to be compatible with this USB C docking station dual monitor.
• Dual 4K HDMI and VGA Video Display ─ This USB C docking station dual monitor allows you to mirror or extend 3 external monitors by 2 HDMI and VGA ports at the same time which provides you with more working space. Dual HDMI output resolution up to 4K@30Hz is compatible with different monitor resolutions; VGA port supports up to 1920x1080@60Hz. Note: Triple Display is only available on Windows, MST is not supported on macOS.
• High-Speed Date Transfer ─ This computer docking station comes with 2 USB 3.1 Type-C port (10Gbps transfer rates), 1 USB 3.1 port (transfer speed of 10Gbps), 2 USB 3.0 ports and 1 USB 2.0 port. USB 3.1 or 3.0 ports allow you to quickly transfer videos or files; USB 2.0 port allow you to connect keyboard or mouse without delay. Built-in SD and TF card readers allow you to transfer photos and large files anytime and anywhere (read speed up to 104Mb/s).

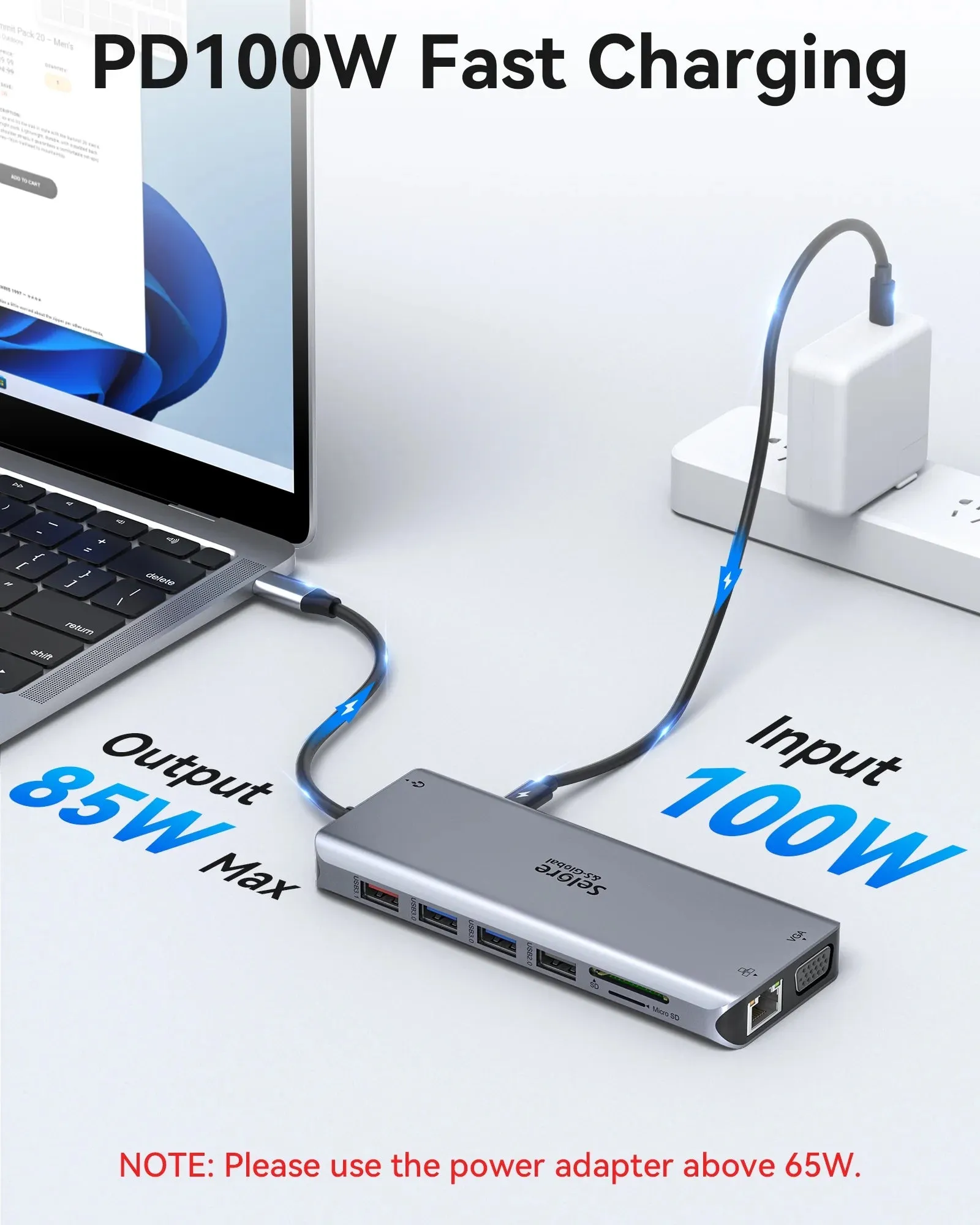

• PD charging & Ethernet & Audio ─ This computer docking station supports up to 100W input, 87W output into your laptop while connecting multiple peripherals, worry-free about power storage,(The USB C charging port only supports the charging function and please make sure your device support power delivery protocol). The Gigabit Ethernet port supports 10/100/1000Mbps network speed. 3.5mm audio port with microphone and audio out function.
• Strong Compatibility ─ This USB C docking station dual display works well for a Full-featured USB Type-C port (support display, charging, data transfer protocol); Such as: Asus Zenbook UX330UA/ Zenbook flip ux370u/ Zenbook ux434f/, Google Chromebook Pixel, Dell Latitude 13 7000/Latitude 13 E7370, Lenovo Yoga 720/910/920/930, Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3, Dell XPS 13/15, etc. (Noted: HDMI VGA function need to confirm that your host device supports video output or DP Alt Mode, NOT for all USB-C port laptop).
• Apple: MacBook 2015-2017; MacBook Pro 2016-2020; MacBook Air 2018-2020; Mac mini 2018-2020; iPad Pro 2018; iMAC 2017-2020
• Dell: XPS13/15/G3/G5/G7/Latitude/Precision/Inspiron series;
• HP: Spectre/Elitebook/Envy/Zbook/ProBook series; Omen laptops; 2018 Elite 800 G4;
• Lenovo: Yoga/Thinkpad/Legion/Ideapad series; Chromebook Flex 5/Flex 14 IML (81XG); Razer Blade Stealth/Blade; Lenovo C930/ T480s/ X390/ 81N8/Y720;
• Surface: Microsoft Book 2/Go/Laptop 3; Pro 7/Pro 5/Pro X
• Google: Chromebook Pixel (2016/2017)/Chromebook C340-15; Google Slate/Google Pixelbook
• Acer: Aspire 5 2019; D17w3 craving c24-865; Swift 1/Swift 3 laptop; Swift 7 sf714-52t-75r6 laptop
• ASUS: ZenBook series; TUF Gaming A15 gaming laptop; Zephyr G14; Rogge GX501
• Samsung: Galaxy S10E/S10 /S10/S9 /S9/S8 /S8 Plus; Note 10/9/8; Galaxy Tab S5e/Galaxy Tab S4; Galaxy S20 Ultra
• Huawei: MateBook series; Mate series; Honor Magic Book
• Others: SanDisk Cruise Glide; Razer Blade 2017 (gtx 1060); Google Pixelbook Go 2019/2020; LG Gram 17 Laptop; Philips PHL 328E9Q
• Note: If your laptop isn't on the list, let us know and we'll be happy to help you check if this hub is right for your device.
• Please make sure the USB-C port of your devices (Laptop/Tablet) support video output.
• Please check if the cable is well connected.
• Please use the standard HDMI cable.
• Windows computer with Intel graphics card only supports two external monitors at most.
• Please make sure your monitor support 4K 60Hz.
• Please make sure the video source is 4K 60Hz.
• Please make sure to use the 2.0 even higher version HDMI cable.
• Please make sure your computer specification support DP1.4 signal output.
